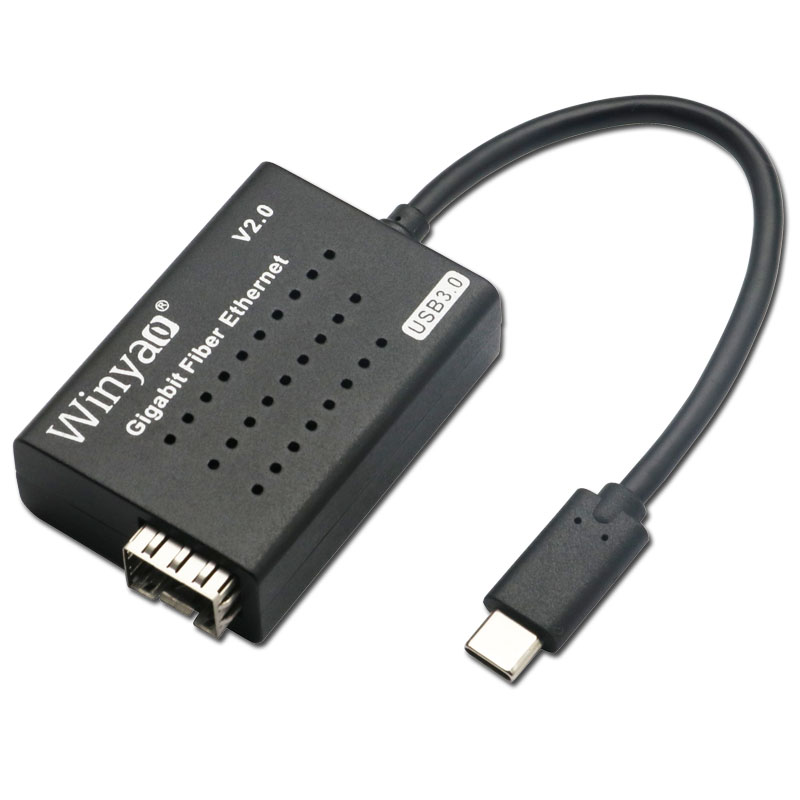

Winyao USB1000F-C Network Atapter
Winyao USB1000F-C network card adapter is based on the Realtek RTL8153 Ethernet controller and features a USB3.0 Type-C design with onboard one SFP Cage. All ports support 1000Mbps speeds and deliver full line-rate Gigabit Fiber network connectivity.
Designed for enterprise servers, data centers, industrial hosts and high-performance network environments, the Winyao WY546T2 PCI Dual-Port Server Adapter is an ideal solution for scalable network deployment. As network workloads continue to grow, multiple server adapters can be combined to improve throughput, deliver multi-gigabit scalability, and provide link redundancy and failover capability.
The adapter features a flexible PCI bus design and is suitable for a wide range of servers and industrial platforms. Its standards-based management capability, broad network operating system compatibility and reliable hardware offload features help reduce CPU utilization and ensure stable operation in modern server and complex network environments.
The WY546T2 provides stable and reliable network connectivity for multi-port servers, edge computing platforms, network security appliances and industrial communication systems. It is designed for applications that require high throughput, low latency and long-term dependable operation.
Features
- MSI and MSI-X support to minimize device I/O interrupts and improve system responsiveness
- UDP, TCP and IP checksum offload to reduce host processor workload
- UDP and TCP segmentation offload support
- SCTP receive and transmit checksum offload
- Packet interrupt coalescing timer and absolute delay interrupt timer
- Energy Efficient Ethernet support for reduced power consumption during low link utilization
Applications
- Enterprise data center servers
- Industrial control hosts and embedded servers
- Private cloud and virtualization platforms
- Network security appliances and router platforms
- High-performance storage and database servers
- Multi-port link aggregation and load balancing scenarios
| Product Overview | |
| Main Controller: | Realtek RTL8153 |
| Bus Interface: | USB 3.0 (Type C) |
| Ports: | SFP × 1 |
| Speed: | SFP port supports 1000 Mb/s fiber |
| Supported Standards: | 802.3z / 802.3ab / 802.3x / 802.1Q |
| Supported Cable: | Multi-mode fiber (62.5/125µm, 50/125µm, 850nm) or single-mode fiber (9µm, 1310nm) |
| Bracket: | |
| PCB Size (mm): | |
| Weight (G.W): | |
| Power Consumption: | Approx. 500mW |
| Temperature: | Operating 0°C ~ 55°C ; Storage -40°C ~ 85°C |
| Key Features | |
| Packet Buffer and Queues: ? | On-chip SRAM Tx/Rx buffer; USB 3.0 bulk transfer and LPM link power management |
| Checksum Offload: ? | NDIS5/NDIS6 IPv4/IPv6/TCP/UDP checksum offload |
| Jumbo Frames: ? | Supports Jumbo Frames up to 9K bytes |
| Segmentation Offload (TSO/LSO): ? | Supports Large Send v1 / v2 (TSO/LSO) |
| VLAN and Flow Control: ? | VLAN tagging (802.1Q) + QoS (802.1P) + 802.3x flow control + HP Auto MDIX |
| Management Features: ? | VeriPHY cable diagnostics + hardware CRC + LAN disable GPIO |
| Wake on LAN and Boot: ? | Wake on LAN + RealWoW! + Legacy PXE / UEFI PXE + protocol offload (ARP & NS) |
| Realtek Management Software | |
| Realtek Management Software: | Realtek USB Ethernet Diagnostic Utility (diagnostics and configuration tool) |
| Operating Systems Support | |
| Operating system support | Windows family (Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11, Server versions subject to driver support) macOS (Mac OS X 10.6 and later) Linux (including Android) Unix / FreeBSD |
