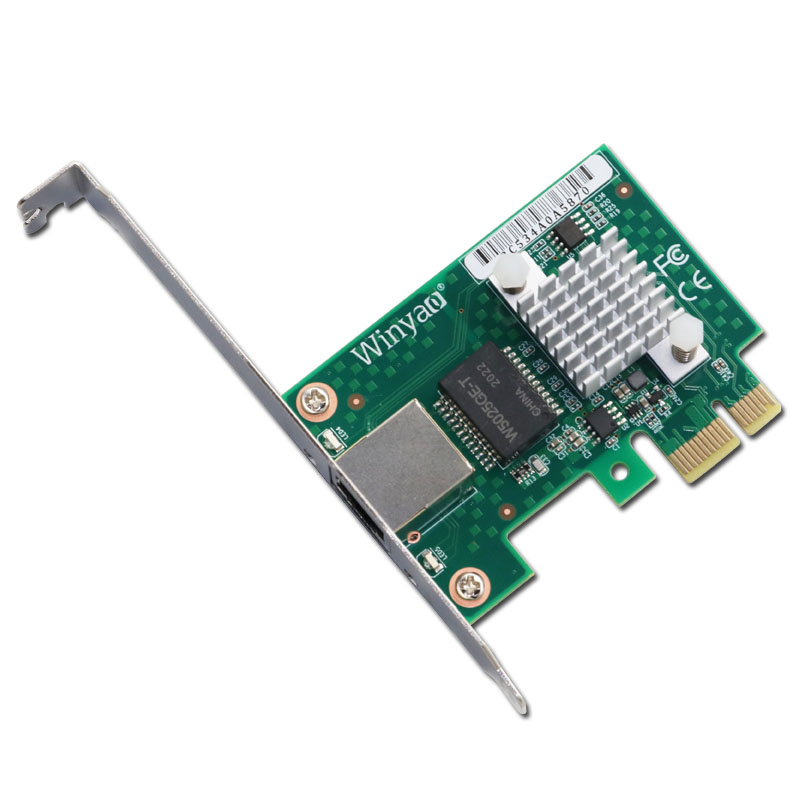

Winyao WYI226T1 Server Adapter
Winyao WYI226T1 network card adapter is based on the Intel I226V Ethernet controller and features a PCI-E x1 design with onboard one RJ45 ports. All ports support auto-negotiation 2.5GbE/1GbE/100Mb speeds and deliver full line-rate 2.5GbE network connectivity.
This adapter is for edge computers, industrial automation, and machine vision (industrial camera) scenarios. It is suitable for 2.5G high-speed uplink on edge computing gateways and edge nodes; deterministic communication for industrial-field PLC/IPC and control networks such as Modbus-TCP, EtherNet/IP, and EtherCAT; and image capture and visual inspection with high-resolution GigE Vision industrial cameras. The chip natively supports Time Sensitive Networking (TSN) and IEEE 1588 / 802.1AS-rev precision time synchronization, providing deterministic latency for multi-device coordination and real-time stream transmission. Bandwidth at 2.5 times that of Gigabit easily handles multiple streams of HD vision data, and the low-power and small-form-factor design is suitable for long-term stable operation in embedded and fanless industrial-control platforms.
Common Key Features
- Intel Ethernet Controller I226V
- PCI Express 3.1 x1 (5 GT/s)
- Integrates MAC and PHY on-chip, providing 1 RJ45 copper port
- Supports 2.5G / 1G / 100M / 10M multi-rate operation
- Supports full-duplex at all rates and 10/100 Mb/s half-duplex, with auto-negotiation and automatic MDI/MDI-X crossover detection
- Compliant with IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3 specifications
- Supports jumbo frames up to 9.5 KB
- Supports IEEE 802.3x flow control, IEEE 802.1Q VLAN, and IEEE 802.1p priority
- Supports IEEE 1588 precision time synchronization and 802.1AS-rev; supports Time Sensitive Networking (TSN): 802.1Qav / 802.1Qbv / 802.1Qbu / 802.1Qbr
- Supports IEEE 802.3az Energy Efficient Ethernet (EEE) at 2500BASE-T / 1000BASE-T / 100BASE-TX rates
- Supports Smart Power Down (SPD), ASPM, APM, ACPI v2.0c, and D0/D3 power states; supports power-managed protocol offload (proxy)
- Supports Wake-on-LAN (Magic Packet) and PXE 2.1 remote boot (EFI 64-bit)
- Supports Intel® Active Management Technology (Intel® AMT) when paired with an Intel vPro® platform; supports adapter teaming
Performance Features
- Supports TCP/UDP and IPv4 checksum offload (transmit and receive directions), and extended transmit descriptors
- Supports TCP Segmentation Offload (TSO) for IPv4 / IPv6 to improve throughput and reduce processor utilization
- Supports MSI and MSI-X message signaled interrupts; up to 5 dynamically allocated MSI-X vectors per port
- Supports interrupt moderation and low-latency interrupts (automatic interval adjustment can be bypassed based on data sensitivity)
- Supports scalable I/O in Linux (IPv4 / IPv6 / TCP / UDP) to improve network processing performance on multiprocessor systems
- Transmit and receive descriptor rings are managed by hardware to optimize system memory and PCIe bandwidth usage
- Supports time-aware shaper and frame preemption, providing deterministic latency for real-time control, motion control, and multi-camera vision triggering
- Supports power-managed speed control and PCIe 3.1 low-power link states; automatically lowers link rate and power when maximum performance is not required
| Product Overview | |
| Main Controller: | Intel I226-V |
| Bus Interface: | PCI Express v3.1 (5 GT/s) x1 |
| Ports: | RJ45 × 1 |
| Speed: | 10/100/1000/2500 Mb/s Auto-Negotiation |
| Supported Standards: | IEEE 802.3 / 802.3u / 802.3ab / 802.3bz / 802.3x / 802.1Q / 802.3az / 802.3 Auto |
| Supported Cable: | Cat5 or higher; 1000BASE-T / 2500BASE-T |
| Bracket: | Metal bracket: Full height / Low profile |
| PCB Size (mm): | Approx. 71 * 55 mm |
| Weight (G.W): | Approx. 70g |
| Power Consumption: | Approx. 1.3W |
| Temperature: | Operating 0°C ~ 55°C / Storage -40°C ~ +85°C |
| Key Features | |
| Packet Buffers and Queues: ? | 4 Tx + 4 Rx queues; ECC packet buffer; supports DMA and descriptor ring management, interrupt coalescing |
| Checksum Offload: ? | IPv4/IPv6 TCP/UDP checksum offload + SCTP integrity offload |
| Jumbo Frame: ? | Supports 9KB Jumbo Frame |
| Interrupts and Multi-Core Scaling: ? | MSI-X + RSS; multi-queue + interrupt moderation, multi-core load balancing |
| TCP Segmentation Offload (TSO): ? | Supports TCP/UDP TSO v2 (max 256KB) + extended Tx descriptors |
| VLAN and Flow Control: ? | VLAN filtering/tagging + 802.1p QoS + 802.3x flow control + Auto MDI/MDI-X |
| Time-Sensitive Networking (TSN): ? | Supports TSN (802.1Qav/Qbv/Qbu, 802.3br) + 1588/802.1AS (Linux only) |
| Power Saving Features: ? | 802.3az EEE + ultra-low power (disconnect approx. 18mW) + ACPI / Modern Standby |
| Wake on LAN and Boot: ? | Wake on LAN + EFI PXE (UEFI network boot) |
| Intel PROSet Software | |
| Intel PROSet: | Adapter diagnostics and advanced configuration |
| Operating Systems Support | |
| Operating system support | Windows 10 / 11 Linux (igc native driver, kernel 5.10+, e.g. Ubuntu 22.04, RHEL 8.x, etc.) FreeBSD (igc driver) / VMware ESXi (built-in igc driver) |
